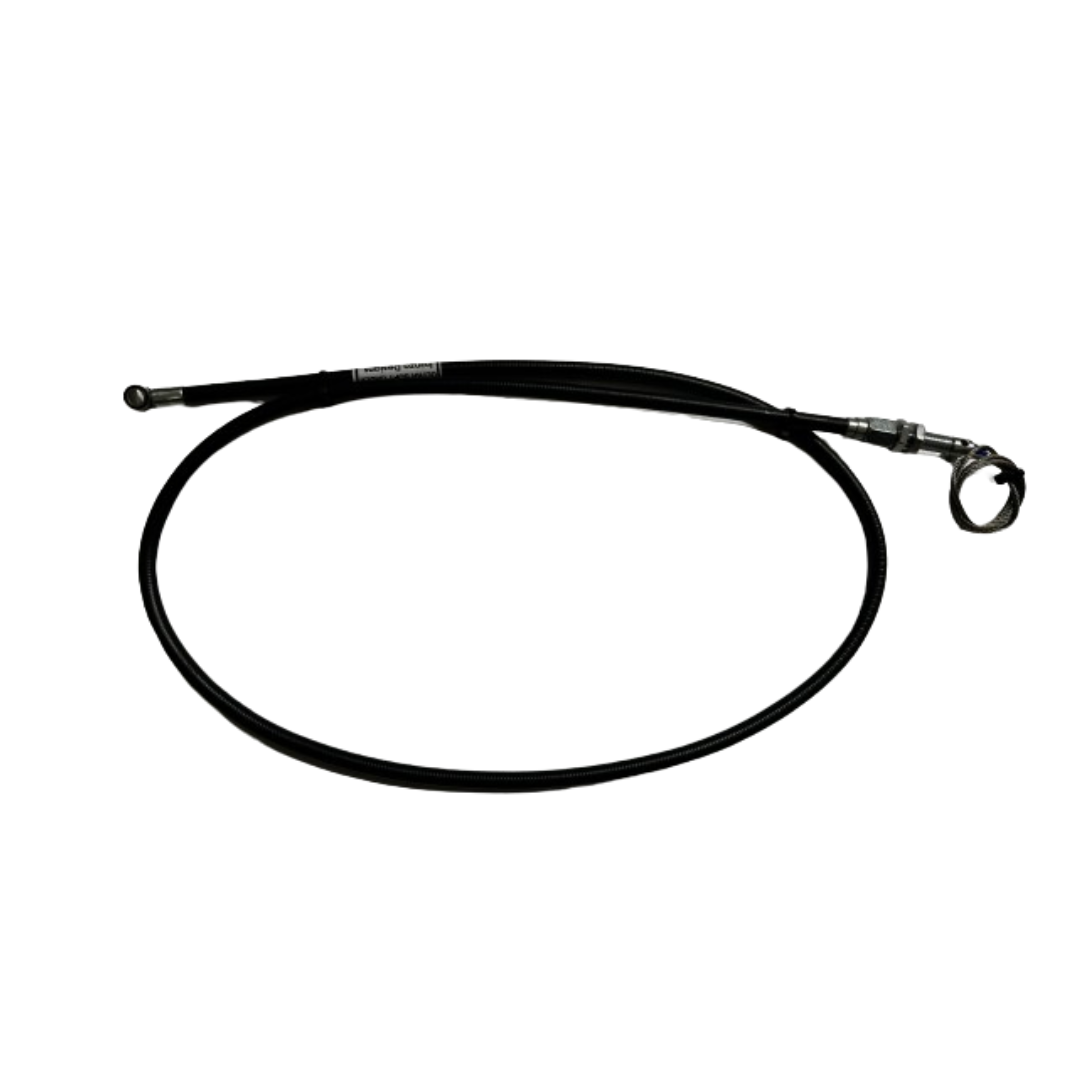

Iranzo Designs Clutch Cable Honda TLM

Clutch cable produced by Iranzo Designs in Spain.

Features:

• Special bearing design for improved performance
• Ultra Soft Cable
• 102cm Sheath
• Improves softness by avoiding friction
• Reduces lever effort
• Works more directly
• Less wear than standard cable

It is important to follow the instructions within the packaging. A careful and correct installation will result in good operation and functionality.

For a complete improvement in the assembly operation, it is advisable to install the appropriate needle bearing on the lever itself, which can be purchased separately either for Amal or Domino levers.
For other types/brands of levers (Honda/Protaper), please get in touch. It is possible to adapt.

Instructions:
Check that the hole in the handle is adequate to accommodate the 10mm bearing.
It is recommended to grease the cable with Vaseline or similar if required. The use of oils or other lubricants is not advisable.
With the cable clamp in place, insert the coloured terminal into the cable before cutting the excess.
After cutting off the excess cable, tighten the metal part of the terminal to avoid unwanted scratches and the cable from fraying.
